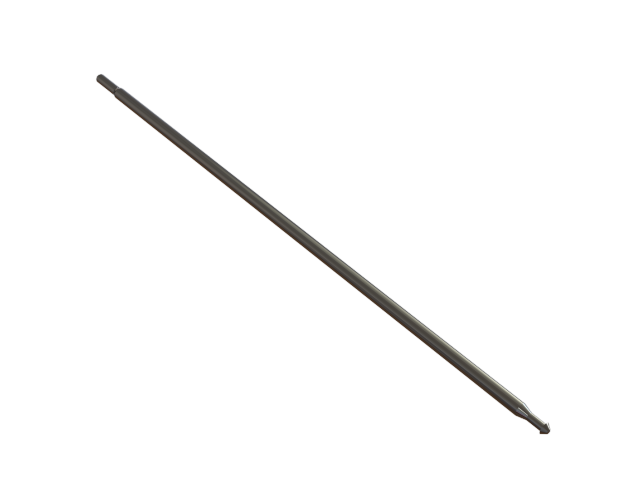

A standard component for tubing-conveyed perforating (TCP) operations, this device delivers impact energy to strike-actuated firing heads, including safety impact firing heads and sand control firing heads.
• Serves as a standardized accessory matched to strike-actuated firing heads, and is fitted with a copper seal screw to indicate impact status.
• Enables repeated use after replacement of the copper seal screw
| Item | Description | |||||
|---|---|---|---|---|---|---|
| Part No. | IDB-11-1-0 | IDB-13-1-0 | IDB-18-1-0 | IDB-23-1-0 | IDB-10-1-0 | IDB-10-2-0 |
| 0.D.MAX | 33mm | 38mm | 32mm | 46mm | 32mm | 32mm |
| Fishing head diameter | 25.4mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| Fishing neck diameter | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm |
| Total Length | 1686mm | 1600mm | 3052mm | 2004mm | 1600mm | 1800mm |
| Weight | 10kg | 11kg | 13kg | 18kg | 23kg | 10kg |
