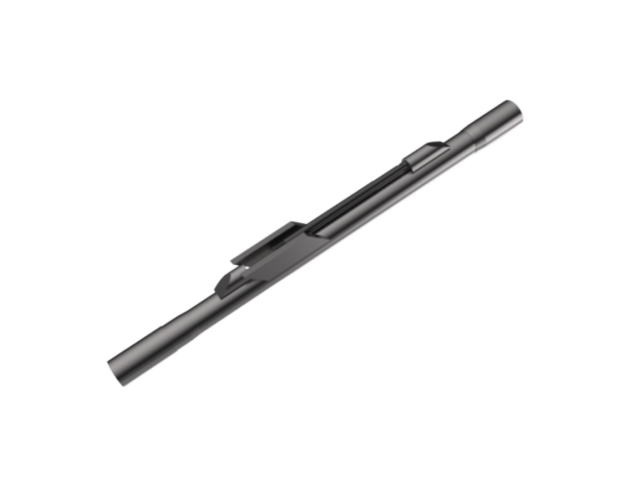

RME supplies two variants of conventional mandrels, which are engineered to accommodate 1” or 1.5” tubing-retrievable gas lift valves as well as tubing flow check valves. Fabricated with integrated side guards to shield the valve during tubing string run-in and retrieval operations, these mandrels are offered in a range of tubing material grades including J-55, N-80, L-80, P-110, along with custom material options to meet specific client needs.
Intuitive operation, standard NPT threaded connections for superior sealing, and side guards protecting the integrated valve.
|
Conventional Mandrels for 1” Gas Lift Valve SPECIFICATIONS |
||||||
|
Part number |
Size |
Tool OD |
Tool ID |
length |
Pressure |
Thread |
|
in |
in |
in |
ft |
psi. |
|
|
|
RMCGLM23841301 |
2-3/8 |
4.13 |
1.995 |
4 |
5000 |
2 3/8” EUE |
|
RMCGLM27846901 |
2-7/8 |
4.69 |
2.441 |
4 |
2 7/8” EUE |
|
|
RMCGLM31252301 |
3-1/2 |
5.32 |
2.992 |
4 |
2 7/8” EUE |
|
|
RMCGLM41263201 |
4-1/2 |
6.32 |
3.958 |
4 |
2 7/8” EUE |
|
|
Conventional Mandrels for 1.5” Gas Lift Valve SPECIFICATIONS |
||||||
|
Part number |
Size |
Tool OD |
Tool ID |
length |
Pressure |
Thread |
|
in |
in |
in |
ft |
psi. |
|
|
|
RMCGLM23845802 |
2-3/8 |
4.577 |
1.995 |
4 |
5000 |
2 3/8” EUE |
|
RMCGLM27851302 |
2-7/8 |
5.13 |
2.441 |
4 |
2 7/8” EUE |
|
|
RMCGLM31258602 |
3-1/2 |
5.859 |
2.992 |
4 |
2 7/8” EUE |
|
|
RMCGLM41268802 |
4-1/2 |
6.875 |
3.958 |
4 |
2 7/8” EUE |
|
